Pile Load Testing

Deep foundation testing for pile capacity

Monitor static and dynamic strain and acceleration using our AST modules embedded at different depths within the test pile.  Perform static and dynamic pile tests remotely in real-time with our web-based applications.  Obtain pile modulus and force distribution over the length of the test pile and develop mobilized pile side friction and end bearing.  Geodaq provides complete pile testing and design services including data analysis, side friction, end bearing and engineering reports.

AST Module Attached to Steel Reinforcement Cage of Test Pier

Pile Testing Sensors

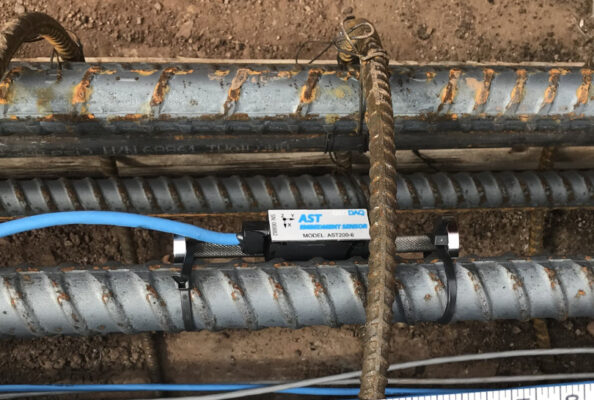

AST modules attached to steel cage for static and dynamic tests on drilled piers

Remote Pile Test Web Application

Monitor static and dynamic pile tests remotely. Oversee pile tests from office and evaluate in real-time.

Test Pile Modulus

Strain results near the pile top can be used to characterize the modulus

Force Distribution

Axial pile force distribution is calculated using pile modulus and measured strain

Lateral Pile Test with AST Modules

Our web software can integrate tilt readings from an array of AST modules to develop lateral deflection profiles

AST_dkblue Lateral Displacement Reliable AST Product Page

Additional Information

Force and Displacement at Pile Top
Force Distribution Over Length of Pile
Temperature Monitoring During Concrete Curing
Lateral Deflection or Movement of Pile
Side Resistance and End Bearing

AST200 Modules
GST5 Modules
GCM4 Controller

Geodaq in Action

Project Spotlight

California Department of Transportation (Caltrans) Uses Geodaq’s PilePRO System to Perform Pile Load Testing Statewide
