Concrete Pavement Monitoring

Dynamic stresses and displacements with temperature and 3D orientation

Monitor vertical, transverse and longitudinal stresses, displacements and temperature in concrete pavement structures with our AST200-6 modules. The AST200-6 module has a uniaxial temperature compensated strain transducer with sub-microstrain resolution. Each module has a 3-Axis accelerometer with a 1500 HZ bandwidth and DC response for dynamic displacement measurements and long-term tilt changes.

Click to enlarge images

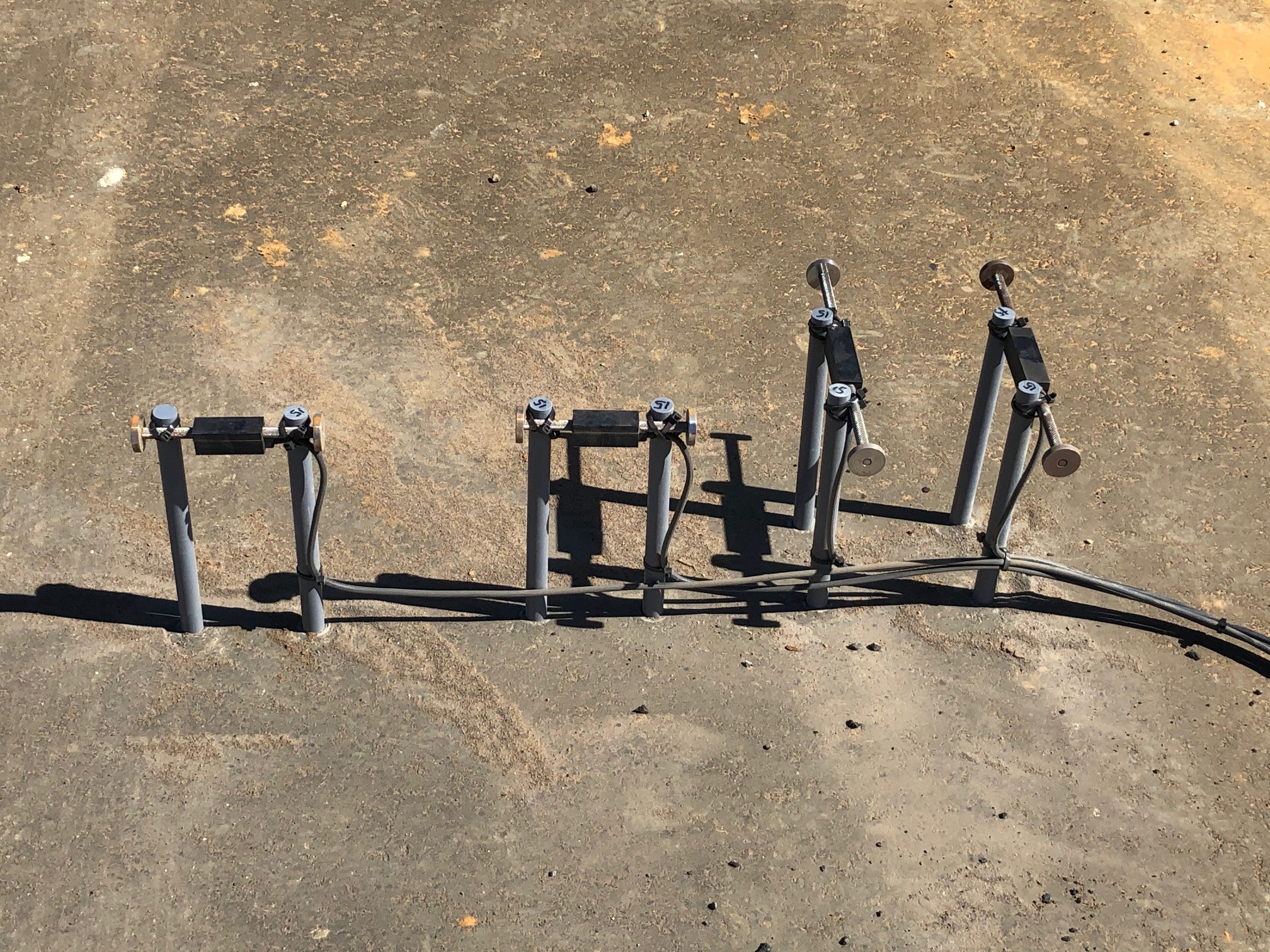

Example of AST Modules in Florida DOT Highway Pavement Prior to Spreader and Paving Machines

Concrete Spreader Machine Over Embedded AST modules

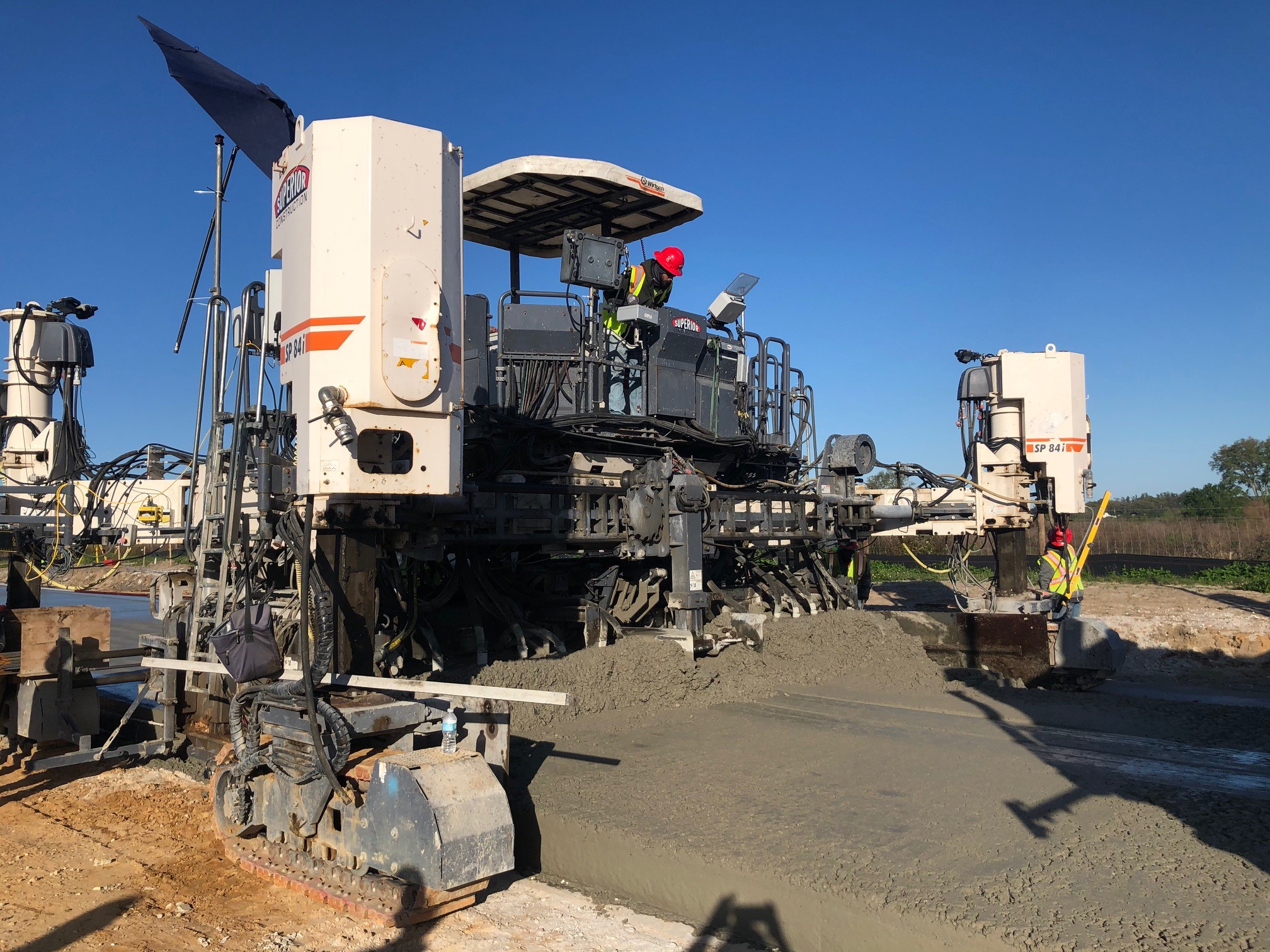

Concrete Paving Machine Over Embedded AST Modules

Uses

  • Dynamic Stresses

  • Dynamic Displacements

  • Temperature changes

  • Sensor orientation in 3D (know your stress orientation)

  • Changes in pavement slope
