Blast and Impact Monitoring

Monitor stresses and motion for blast and impact events

Remote systems for monitoring high frequency strain, displacement and acceleration associated with blasting and impact loadings. Results in real-time with reduced signal plots and FFT results as well as comparison to project specific criteria levels.

Bridge Monitoring App
Bridge Monitoring App

Click to enlarge images

Project Spotlight: Oroville Dam Spillway and Gate Structure

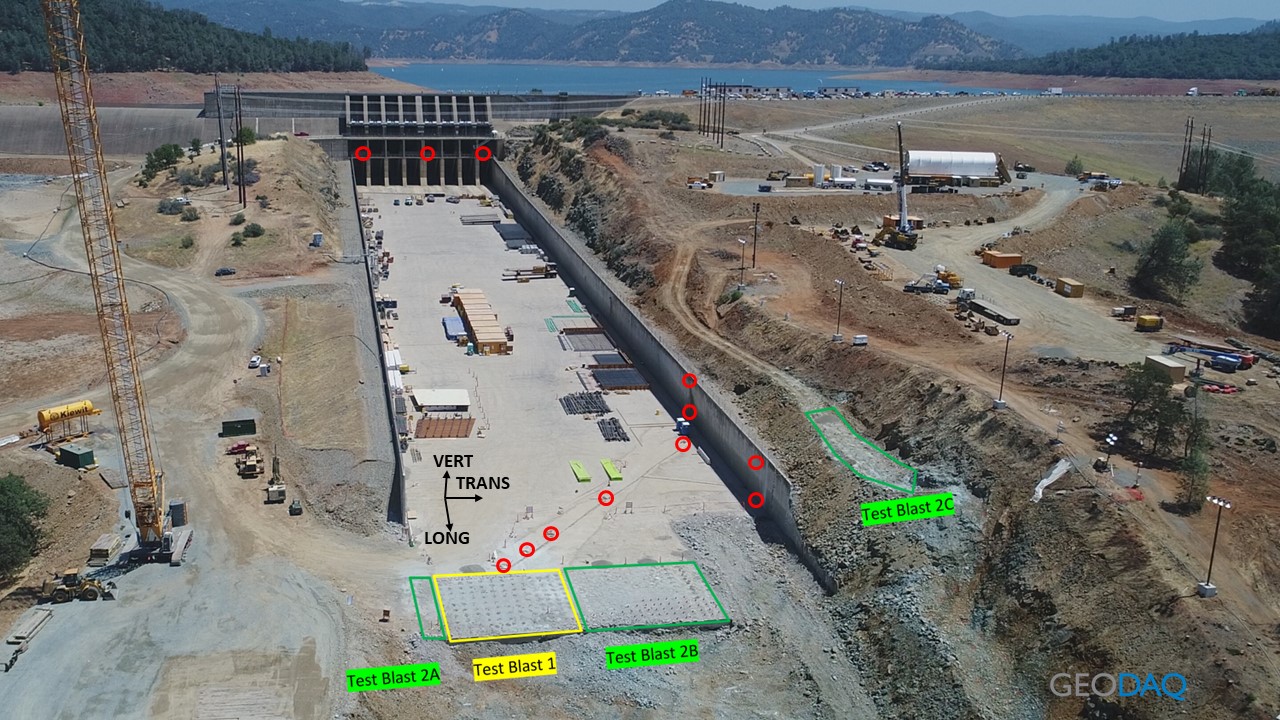

Strain and acceleration instrumentation locations

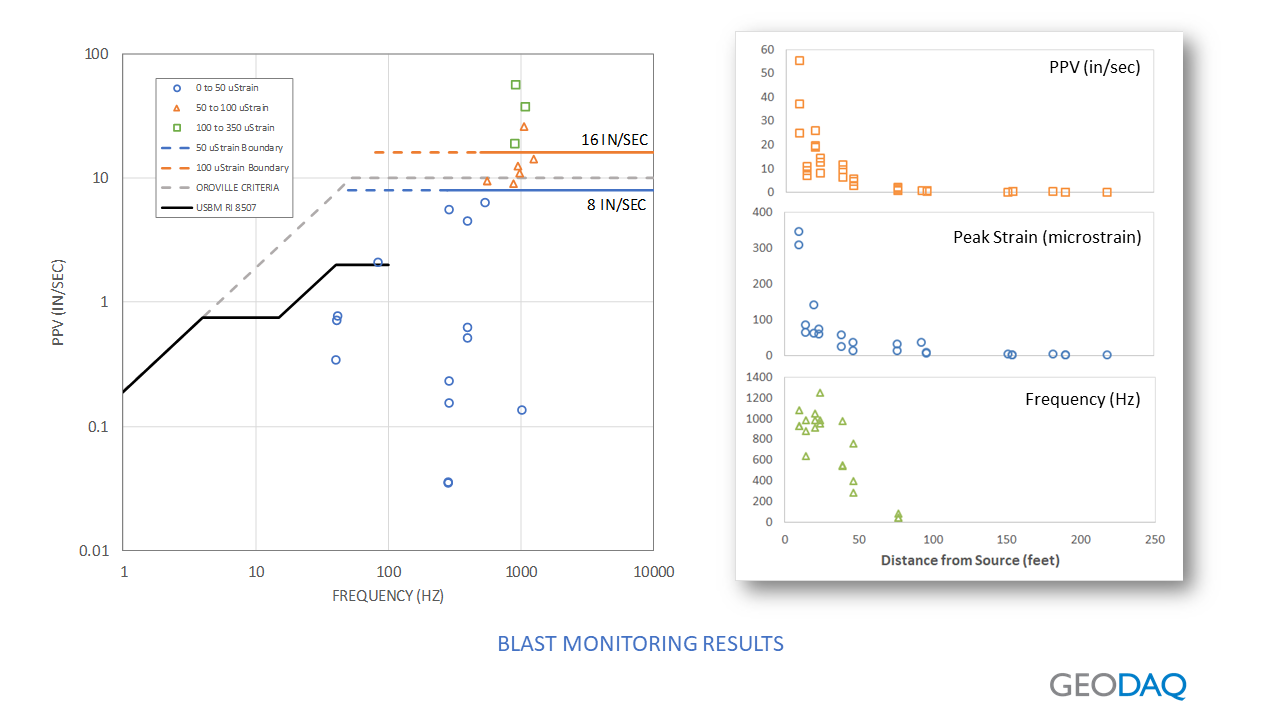

PPV and peak stress results

Dynamic strain and acceleration were captured at multiple locations during this blast event

Uses

  • Dynamic Stresses

  • Dynamic Displacements

  • Vibration Levels

  • Trigger and Capture Events

  • Changes in pavement slope

Relevant Products

  • SS4 Modules

  • GST5 Modules

  • GCM4 Controller
